BJC Speaker Cable, made with 4S11 and Welded Locking Banana Plugs, bi-wire terminations At Blue Jeans Cable, we were never happy with the conventional methods of attaching speaker cable to banana plugs. Setscrews are fine, but lack pull strength; compression connections are never as strong as they look like they're going to be; and solder, on large high-mass connectors, is slow going and tends to cause a lot of insulation meltback. Our solution: ultrasonic welding. Our Sonobond Ultrasonic Welder (made in West Chester, PA) welds the copper wire to the brass banana plug body without the excessive heat associated with conventional welding, fusing copper to brass in a tight, strong, low-resistance, reliable connection. Bi-Wired Terminations: This cable is made with two banana plugs on the amplifier end and four on the speaker end, for use in bi-wired setups. If you're looking for a cable with just two bananas on each end, we offer those as well -- search our listings. Ultrasonic-Welded Locking Bananas: a Blue Jeans Cable exclusive feature The Plug This is our locking banana plug, disassembled. Notice anything? There's no attachment mechanism for the wire -- no set screws, no clamps, nothing but a channel for the wire to sit in. The Welder This is one of our Sonobond Ultrasonic Welders, in our Seattle shop. Unlike heat-based methods of welding, it drives a large amount of ultrasonic vibration into the junction between the wire and the plug, fusing them together. The Weld Here's a plug body after welding. The surface structure of the wire breaks down during welding, allowing dissimilar metals to fuse. The resulting weld has extremely low contact resistance and high pull strength. The "Locking" Feature The outer collar of the banana plug is threaded. It should inserted into the binding post with the collar "backed off" from the plug end (top image). When the plug is in the binding post, simply turn the locking collar clockwise (bottom image) and it pushes a central pin forward, expanding the splines for a firm engagement in the post.

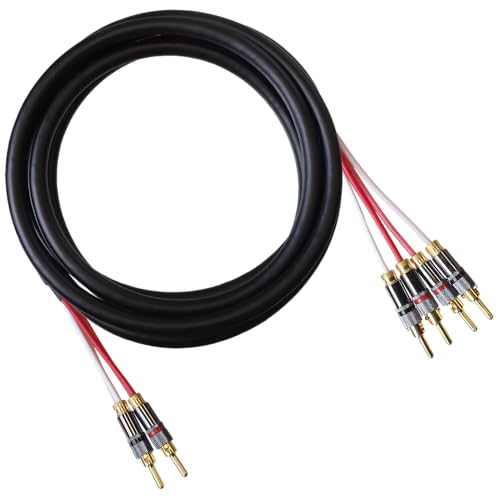

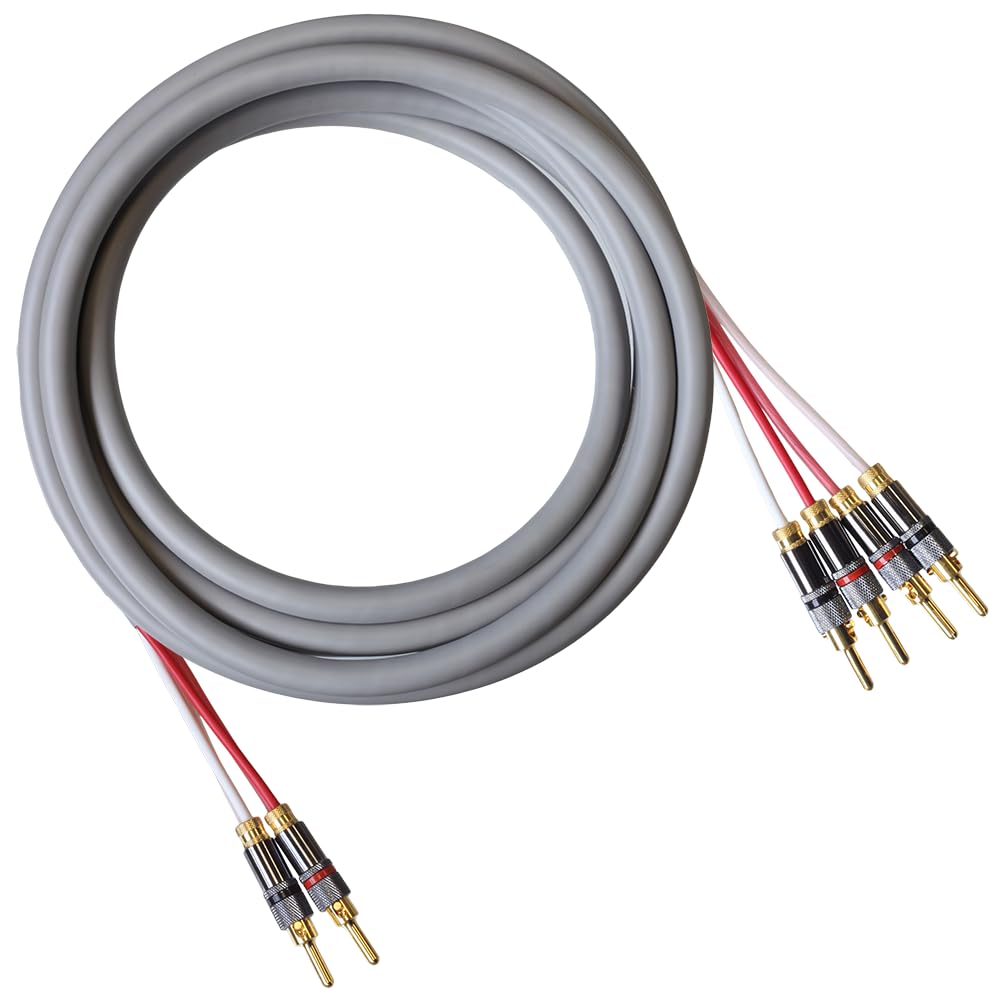

Bi-wired configuration two connectors at the amp end, four at the speaker end.

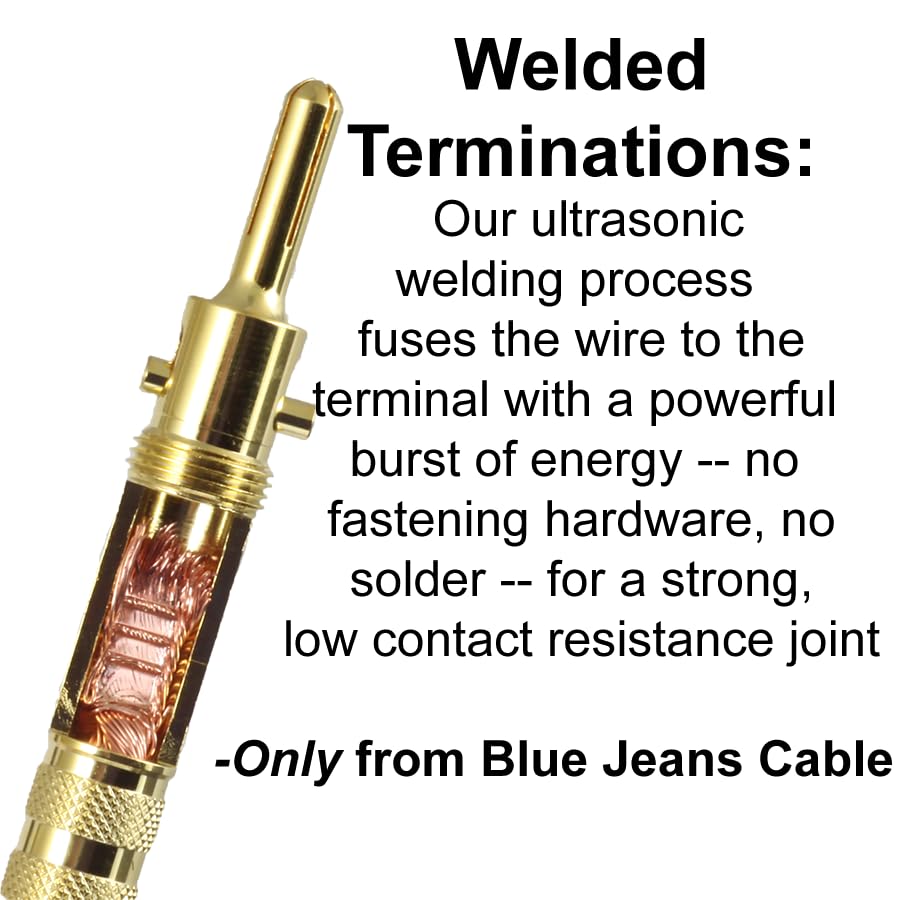

The best terminations in the industry our unique ultrasonic welding process fuses the copper wire directly to the brass banana or spade connector, with no intervening metal, no compression sleeves or setscrews.

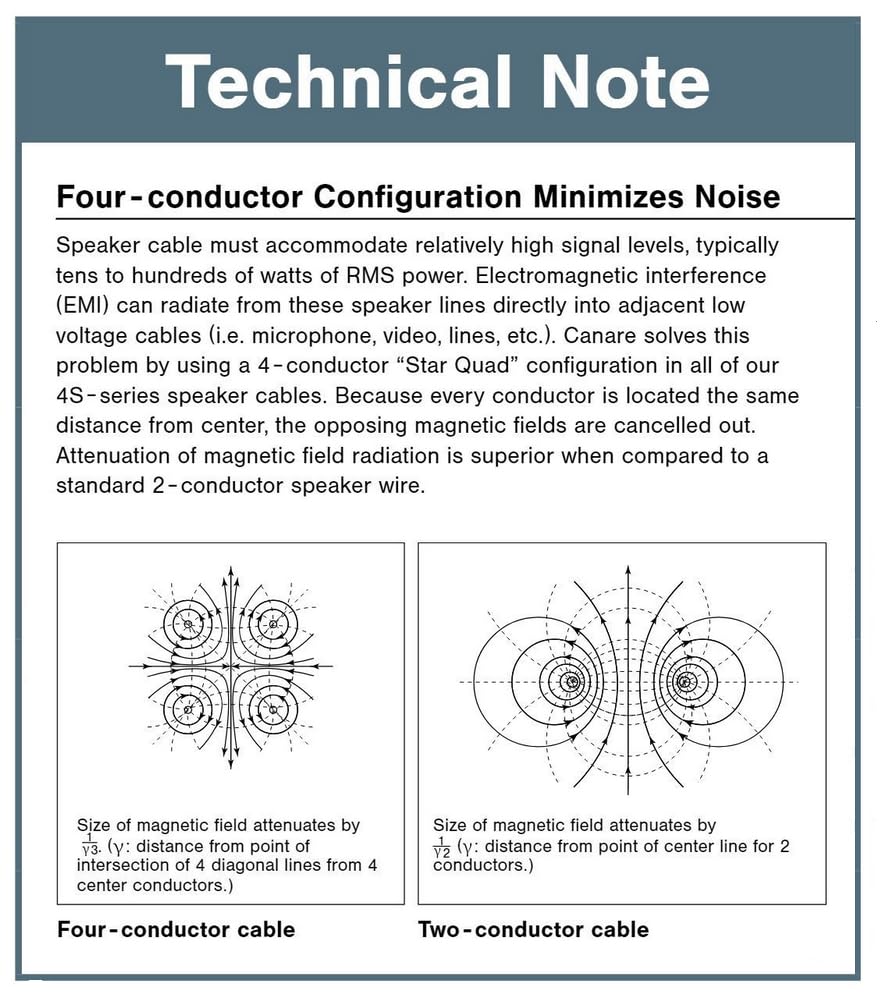

Star quad cable configuration reduces EM field around the cable for reduced interaction with other system cabling
Assembled in Seattle, Washington at our own cable shop, using BJC's proprietary connectors and Sonobond welder.

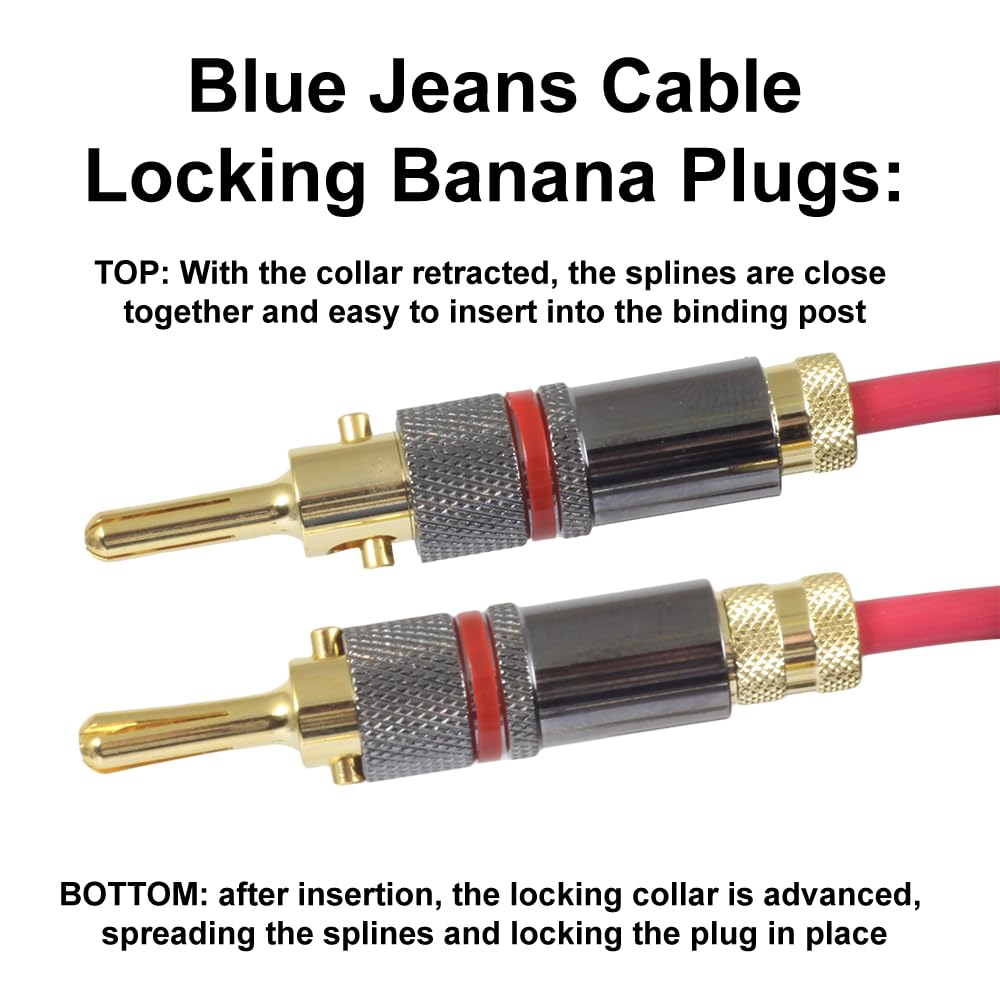

Our locking banana plugs give the best possible engagement between plug and binding post; advancing the locking collar tightens the splines to the inside of the post.
