WINSOON 5FT to 10FT Adjustable Bypass Sliding Barn Door Hardware Kit - Heavy Duty Single Track System for Double Doors with Big Spoke Wheels - Low Ceiling Design for Bedroom, Closet, or Farmhouse Style Interior

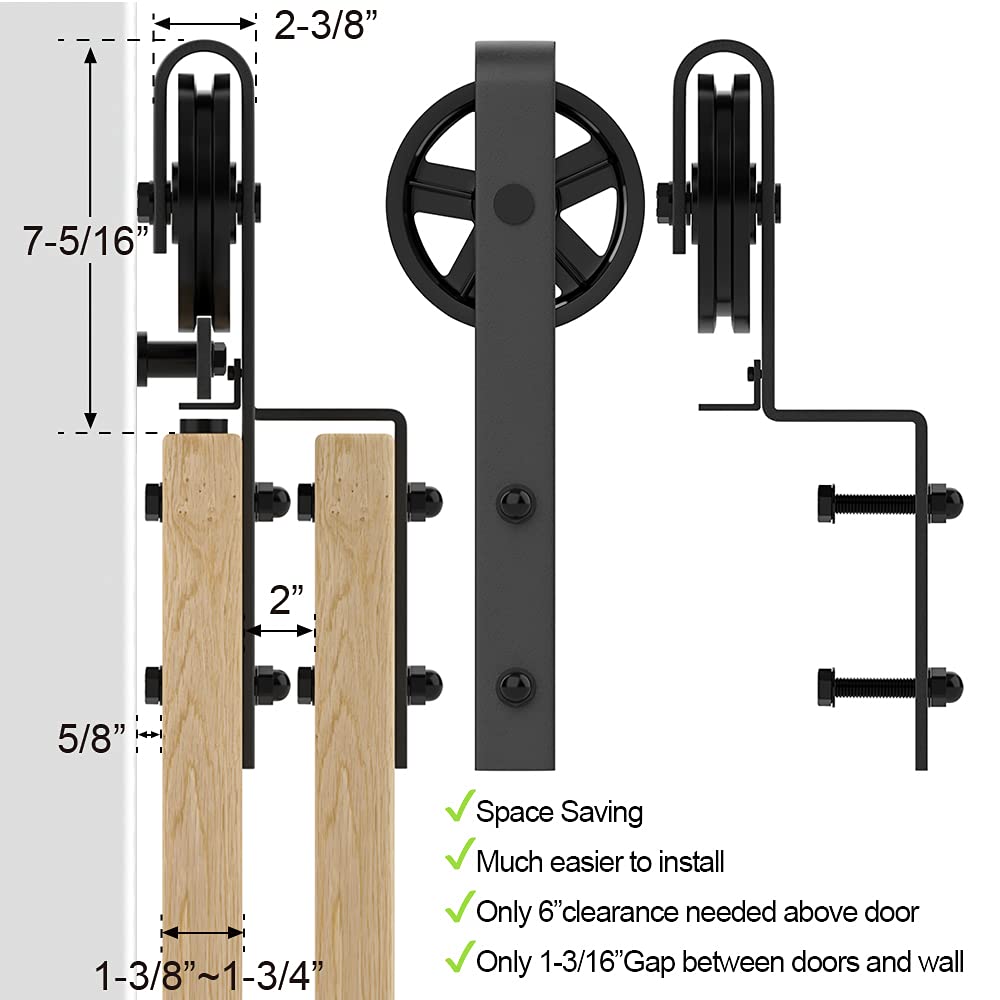

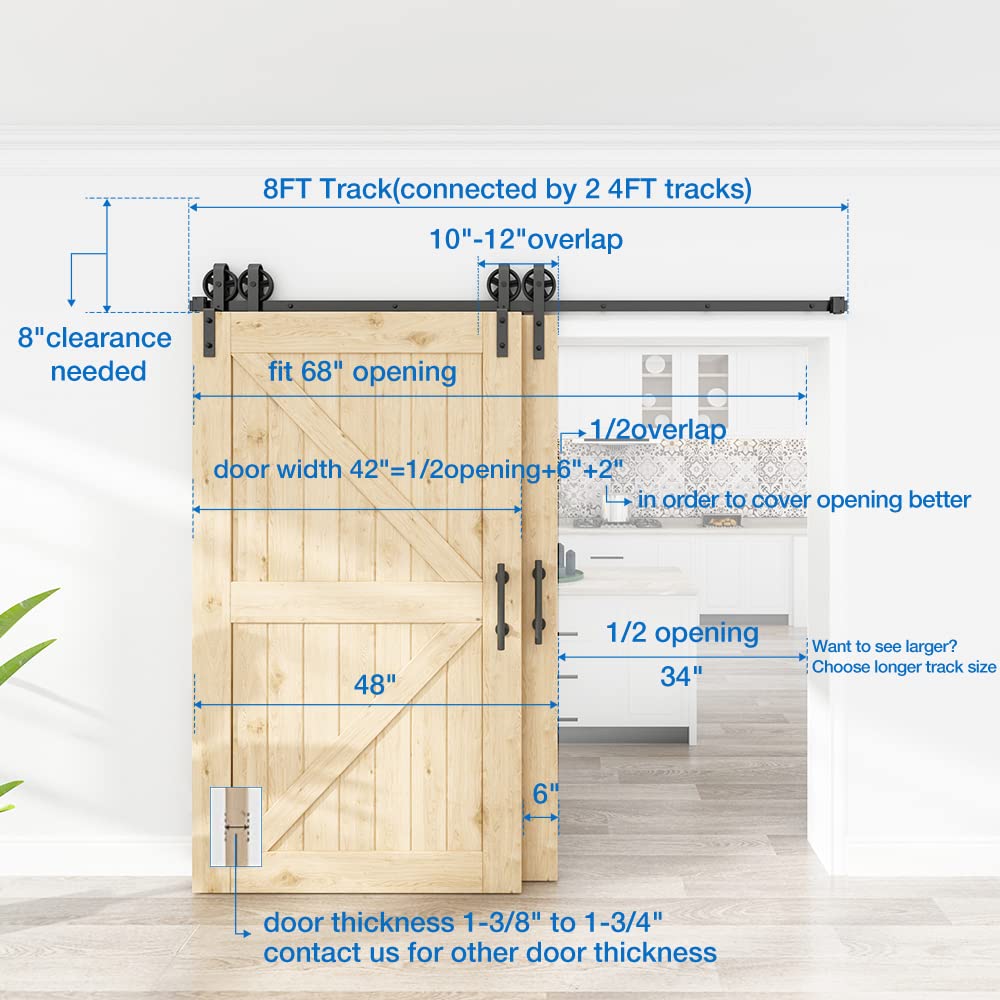

8ft Single Track Bypass Barn Door Hardware Heavy Duty Sliding Big Wheel Kit for double doors ( door not include ) Q: How do I know the length of track I need for my opening? A: We suggest your each door is 4"-6" wider than your half opening. And the track length should be equal to your total two doors width and 1ft longer than your opening. For example, if you have two doors that are each 4FT wide. You will need 2 x 4FT = 8FT long track. Or if you have a opening that is 8FT wide, you will need the 9FT long track. Q: Can I cut the rail to fit my wall? A: Yes, the rail can be cut to any length. We recommend using an angle grinder to cut the rail. Q: What is the weight capacity? A: Your door limited 230lbs. Q: What is the compatible door thickness? A: 1-3/8" ~ 1-3/4". Note: If you have door thickness that falls out of this range, please let us know your exact door thickness so that we can put shorter hex bolts for your thinner doors or longer hex bolts and spacer extenders for your thicker doors. Q: When do I need a headboard?? a. If the pre-drilled holes in the rail don't line up with your wall studs. b. If there is a doorway trim. Attach a header board with the same thickness as your doorway trim into your studs first, and then mount the rail onto the header board. Pre-purchase Information Doors are not included, only the hardware kit is for sale. You will need 7-5/16" clearance from the top of your door to the ceiling (or crown molding, if any) for this kit to fit correctly. Fit for door panel thickness: 1-3/8" to 1-3/4". This single rail bypass hardware kit can hold door weight 230lbs. The gap between door and wall is 5/8" and between door and door is 2" based on 1-1/2" thick door. Safety Secure Measures Hanger: Upgraded Nylon wheels, each with 2 life time lubricated bearing ensure slide smoothly and quietly. Test beyond 120,000 rolls. You can use it for a long time! Door Stopper: Prevent your door from rolling off the rail, Anti-collision, the rubber caps ensure a quiet close. Anti-jump Pad and Bar: Prevent door being lifted off rail. Install them on the top of your door, the anti-jump pad and the roller can hold the rail once the door hit the stopper. 2 Pair of L Floor Guides Two installation methods give you the option, allow you to not need to groove the door bottom. Perfect for any grooved or ungrooved doors, fit all thickness doors. The floor guide can prevent the doors from swing, allow you to open and close your door freely. Packaging List 2 x 4FT Rail, 1 x Junction Plate6 x Track Support2 x Straight Down Steel Hanger2 x Bending Steel Hanger2 x Door Stopper2 x Anti-jump Pad2 x Door Guide1 x Hex Wrench All other necessary hardware is included as you see in the pictures. ONLY the hardware is for sale, doors are NOT INCLUDED. J hanger single track bypass kit I hanger single track bypass kit J hanger double track bypass kit I hanger double track bypass kit 30x84 Inch Barn Door 36x84 Inch Barn Door Add to Cart Add to Cart Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.4 out of 5 stars 1,584 4.4 out of 5 stars 1,584 4.5 out of 5 stars 461 3.3 out of 5 stars 7 4.5 out of 5 stars 4,183 4.5 out of 5 stars 4,183 Price $78.99$78.99 $76.99$76.99 — no data — no data — no data — no data Brand WINSOON WINSOON WINSOON WINSOON WINSOON WINSOON Used For Double Doors Double Doors Double Doors Double Doors Sliding Barn Door Sliding Barn Door Rail Length 5ft.-14ft. for choose 5ft.-16ft. for choose 4ft.-18ft. for choose 4ft.-18ft. for choose N/A N/A Pre-Drilled Hole Distance of Rail: 16in. 16in. 16in. 16in. N/A N/A Fit Door Panel Width: two 2-1/2ft. - 7ft. wide doors two 2-1/2ft. - 8ft. wide doors two 2ft. - 9ft. wide doors two 2ft. - 9ft. wide doors N/A N/A Fit Door Panel Thickness: 1-3/8in. - 1-3/4in. 1-3/8in. - 1-3/4in. 1-3/8in. - 1-3/4in. 1-3/8in. - 1-3/4in. N/A N/A Min Space Needed Above Door: 6in. 5-1/2in. 9in. 9in. N/A N/A Weight Capacity Total 230lbs Total 230lbs 230lbs per door 230lbs per door N/A N/A Surface: Frosted Black Frosted Black Frosted Black Frosted Black Smooth Unfinished Smooth Unfinished
