HGM4020N Generator Controller with 8 Language Display & AMF - Compatible with One Mains One Unit System | Backup Power for Home, RV, and Emergency Use

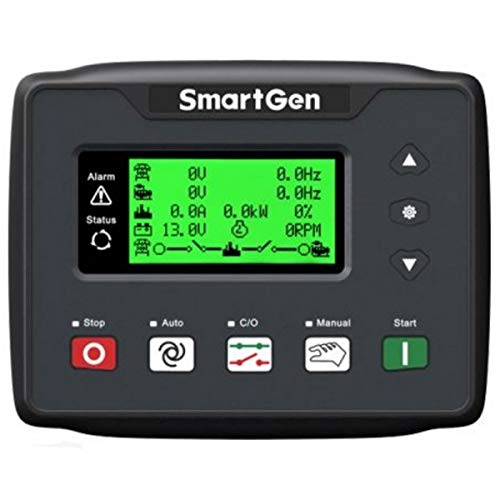

HGM4000N series genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measurement, alarm protection and etc. functions. It fit with LCD display, optional languages interface (Chinese, English, Spanish, Russian, Turkish, French, Portugal, and Polish), and it is reliable and easy to use.HGM4000N series genset controllers adopt micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. All parameters can be configured from front panel or through programmable interface (USB or RS485 interface) via PC. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.1 PERFORMANCE AND CHARACTERISTICSHGM4000N series controller has six types:HGM4010N/HGM4010NC/HGM4010CAN: ASM (Automatic Start Module)，it controls generator to start/stop by remote signal;HGM4020N/HGM4020NC/HGM4020CAN: AMF (Auto Mains Failure), updates based on HGM4010N/HGM4010NC/HGM4010CAN, moreover, has mains electric quantity monitoring and mains/generator automatic transfer control function, especially for automatic system composed by generator and mains.Main features as follows:à 132x64 LCD with backlight, selectable language interface (Chinese, English, Spanish, Russian, Turkish, French, Portugal, and Polish), push-button operation.à Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions.à Silicone panel and pushbuttons can be used in extreme temperature environment.à RS485 communication interface enable “Three remote functions” (remote control, remote measuring and remote communication) according to MODBUS protocol.à Equipped with CANBUS port and can communicate with J1939 genset. Not only can monitor frequently-used data (such as wa
